Spiral and Spiral Plus Wing Pulley

Continuous belt contact that eliminates excessive noise and vibration.

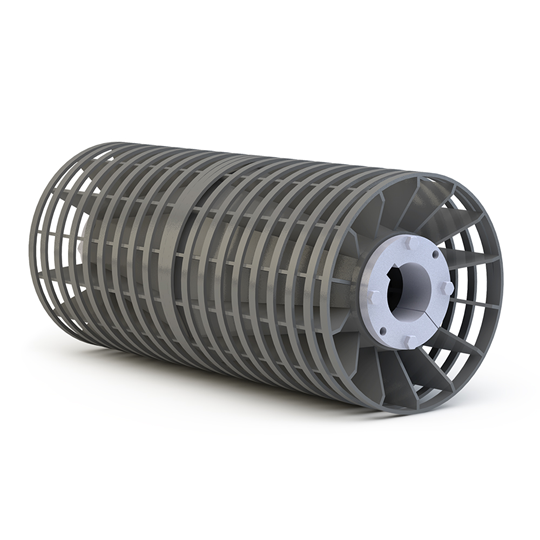

The PPI Spiral Wing and Spiral Plus Wing pulleys are formed by winding flat bar spirally from the center of a wing pulley to the outside ends. This continuous belt contact design eliminates noise and vibration, while still providing a cleaning effect and allowing a path for debris to escape rather than being trapped between the pulley and belt.

  Reveal More
  • Spiral and Spiral Plus Wing
  Click Image to Zoom

Popular Connections With:

Before
After
  • Spiral wings are gentler on mechanical splices than standard wings
  • Spiral allows continuous belt contact for reduced belt vibration and noise compared to standard wings

SPIRAL WING:

  • Built using our proven Heavy Duty Wing construction

SPIRAL PLUS:

  • Rugged design that uses our proven mine duty wing construction
  • Thicker wings and spiral contact bar give added strength and wear resistance

SPIRAL WING:

  • The Spiral Wing is available with either a crown or flat face. It is available in 6” through 60” diameter
  • Additional sizes are available upon request

SPIRAL PLUS:

  • Available in sizes of 12” to 60” diameter and in crown or flat face
