Precision Slide Tube (PST)

Slide tube design protects the screw from the environment. Side mount installation.

Many different styles of Take-Up Frames exist for providing tension to the return side of conveyor belts. That’s why at PPI we offer such an extensive line of Take-Up Frames with characteristics that make them rugged, easy to operate and to install.

  Reveal More

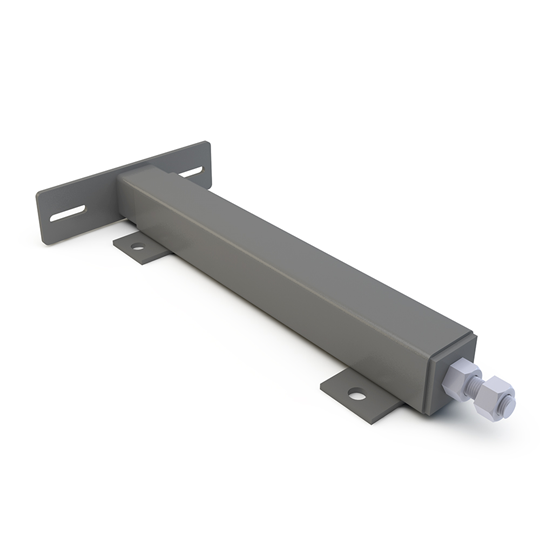

  • Precision Slide Tube Take-Up frame
  Click Image to Zoom

Popular Connections With:

Before
After
  • Standard templates for two-bolt housings (size 500 drilled to order)
  • Standard grease zerk to lubricate and protect the screw
  • Protected screw design used for ball and unit roller bearings
    • In-line frame; rod force is at the center line of the bearing
  • Stainless-steel threaded rod
