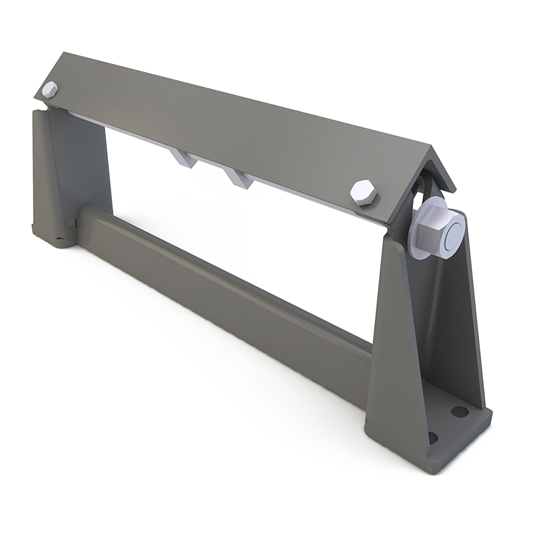

Precision Top Angle (PTA)

Top angle protects the adjusting screw; fits round bottom housing bearings.

Many different styles of Take-Up Frames exist for providing tension to the return side of conveyor belts. That’s why at PPI we offer such an extensive line of Take-Up Frames with characteristics that make them rugged, easy to operate and to install.

Reveal More

Features Options Resources

Click Image to Zoom

Popular Connections With:

Before

After

Features
Options
Resources

Used for bearings with a round bottom housing; Dodge and Linkbelt E
Mounting holes are the same as SKF, Linkbelt, etc., but different bearing
Frame disassemble in the field and re-assemble around the bearing

Stainless-steel threaded rod
