Type E Bearings

Bearings for challenging mounting applications.

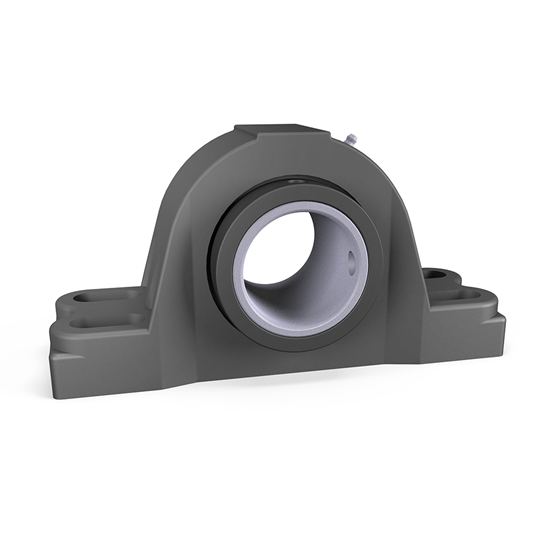

The PPI Type E pillow block bearing was designed specifically for the challenges of multiple conveyor applications. That’s why our Type E bearing utilizes a double row spherical bearing that makes a misalignment of ± 2 degrees possible. This allows the bearing to be more forgiving of mounting positions that are less than perfect. Additionally, a double lip nitrile contact seal provides the necessary protection from the heavily contaminated applications, common to the conveyor industry.

  Reveal More
  • Type E Bearings
  Click Image to Zoom

Popular Connections With:

Before
After
  • Rugged one-piece cast-iron housing
  • Precision spherical bearing with the ability to misalign ±2°
  • Set screw mount for fast simple shaft attachment
  • Effective double lip contact seals
  • Slotted mounting holes for maximum versatility
  • Designed for conveyor applications
  • Stocked at service centers for quick delivery
  • Available in 2 bolt and 4 bolt options
  • 2 bolt bore sizes available are 1 7 /16 – 3 7/16
  • 4 bolt bore sizes available are 2 7/16 – 4 15/16
