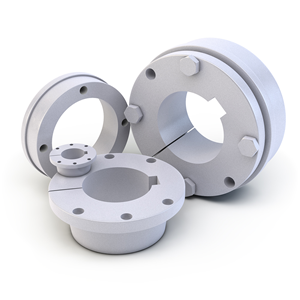

Bushings

All the holding power you will ever need for conveyor pulleys.

Computer-designed and specifically developed for conveyor pulley applications. PPI provides bushings with all the holding power you’ll ever need for conveyor pulleys.

Videos:

PPI BUSHING INSTALL

  Reveal More
  • round bushings for pulleys and shafts with mounting holes for pulley attachment
  Click Image to Zoom

Popular Connections With:

Before
After
  • Designed for conveyor pulley applications
  • XT:
    • 2” per foot taper
    • Self-seating – no need to hammer bushing in
    • Less axial movement – reduces end disc stress and seats quicker
    • High clamping force eliminates need for keyway on non-drives
    • Bolts equally spaced for even draw-up
    • More material in the barrel
    • Full length hub engagement
    • Flange deflection stores up cap screw torque for seating while running
    • Easy removal
    • Full size keys in max bores for size 50 and larger
  • QD:
    • Designed for a wide variety of applications
    • 3/4” per foot taper - self seating
    • High clamping force eliminates need for key way on non-drives
    • Flange deflection stores up cap-screw torque for seating while running
