Grain Herringbone Wing® Pulley

Combines improved wear and quieter operation.

PPI’s Grain Herringbone Wing® combines improved wear, quieter operation and gentle grain handling compared to standard wing pulleys.

  Reveal More

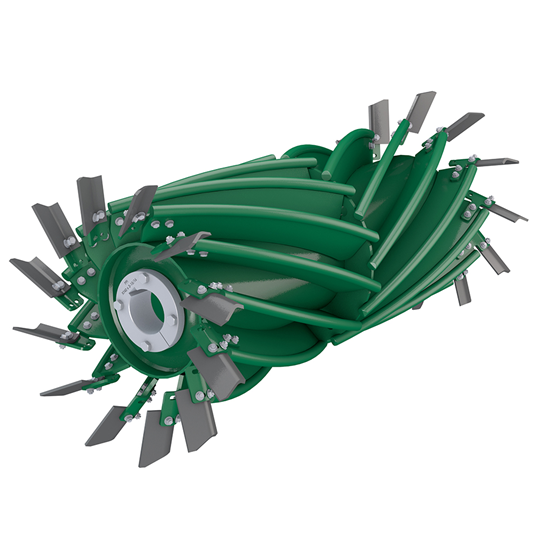

  • herringbone wing pulley with rubber flippers connected at the outside end of the contact bar
  Click Image to Zoom

Popular Connections With:

Before
After
  • Bolt-on brackets with rubber flippers gently scoop up grain and circulates it back onto the belt
  • Angled wings direct grain to the outside edges of the pulley more efficiently
  • Increased number of wings gives more support to thin grain belting
  • 3/8” wings standard
  • 1” AR contact bar extends wear life
  • Available for diameters <10”
  • 12-14” diameters available in face widths up to 63”
  • 16” diameter available in face widths up to 66”
  • 18” diameter and up available in face widths up to 78”
