Craft-Lag®

Designed to be a field replaceable lagging ideal for pulleys in locations where removal and replacement is difficult.

Craft-Lag® is designed to be a field replaceable lagging. It is bonded to a 5” wide rigid steel backing, which is then factory formed to a specific pulley diameter. Craft-Lag can be installed using retainers that are welded or bolted to the pulley rim, or it can be welded directly to the pulley rim without retainers. It is ideal for pulleys in locations where removal and replacement is difficult.

Videos:

CRAFT LAG ASSEMBLY

  Reveal More

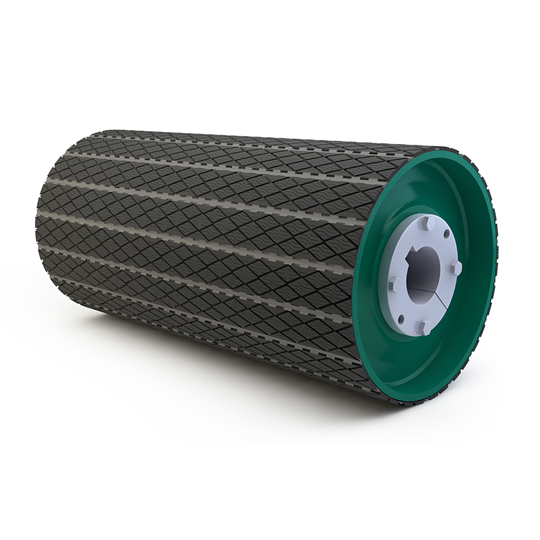

  • Drum pulley wit double grooved lagging connected to the drum with steel backing- craft lag.
  Click Image to Zoom

Popular Connections With:

Before
After
  • Factory hot vulcanization under pressure assures the best possible bond of rubber to backing plate
  • Steel backing plates are precision formed at the factory to fit each individual pulley
  • Metal retainers are permanently welded or bolted to the pulley face to securely hold the pads in place
  • Self-cleaning of the pulley surface occurs due to spaces between the pads and double grooving
  • Pads are field replaceable
  • Interchangeable with Holz brand lagging
    • Available in 60 durometer - SBR and Neoprene
