True Impact System

Solves the problem of sealing skirt boards and the impact upon the belt.

PPI True Impact System (TIS) utilizes proven impact rolls. Along with a center support system, it  cushions against the frame and gives the TIS a double action dampening system.

Videos: English



THE TRUE IMPACT SYSTEM



  Reveal More

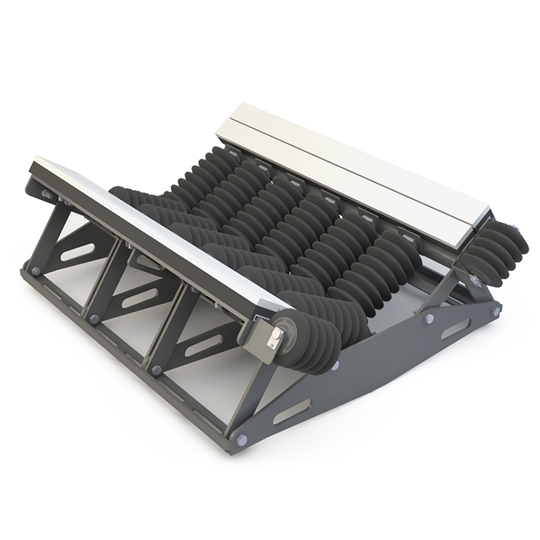

  • True Impact System impact bed with two guiding rolls on either side and twelve center rolls with tapered discs down the center
  Click Image to Zoom

Popular Connections With:

Before
True Impact System
After
  • The slider rails come with 1/2” thick Ultra-high molecular-weight (UHMW)
  • Multiple action shock absorption to extend the life of your belt
  • Center rolls with tapered discs give increased impact absorption
  • 1/2” thick UHMW for skirt board sealing
  • Manufactured using heavy 1/2” steel plate construction
  • Reinforced frames for increased strength
  • Fold-down wings for ease of maintenance
  • Lift strap helps guide rolls into position
  • Fits D6 and E7 rolls
  • Come in a low-profile version (TISL) that will line up with C5/D5 or an E6
  • Available as a Channel Impact System (CIS)
  • Available in 2’ and 5’ lengths
