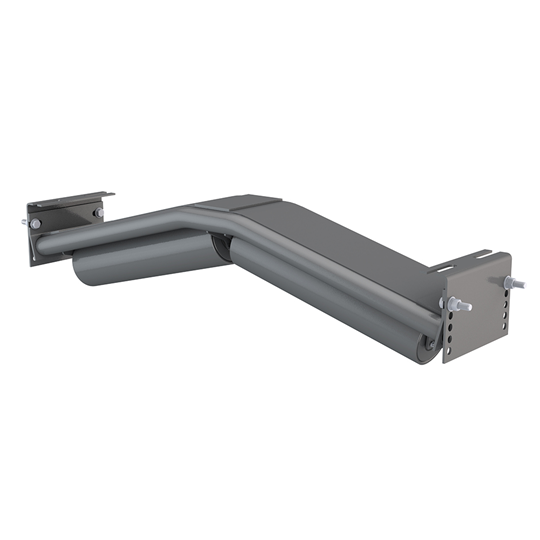

Inverted V-Return

Used to track the belt on the return side of the conveyor.

Inverted V-Return (IVR) idlers are used to positively track the belt on the return side of the conveyor. The PPI IVR is adjustable to increase the displacement and the resulting tracking force on the belt.

  Reveal More
  • v-shaped idler
  Click Image to Zoom

Popular Connections With:

Before
After
  • Positive tracking on the clean side of the belt
  • Sealed for life ball bearings
  • No swivels
  • Works on reversing belts
  • Available in CEMA C, D, and E
  • Adjustable and can be lowered to create more of a channeling eject on the belt
