Wire Rope Idlers

Designed for hard to access applications.

Designed primarily to be used in underground applications, where ceiling heights can be quite limited. PPI Wire Rope Idlers incorporate an offset center roll design that minimizes overall profile height of the idler assembly. Outfitted with a universal clamp that provides versatile installation on wire rope applications or rigid rail systems.

  Reveal More

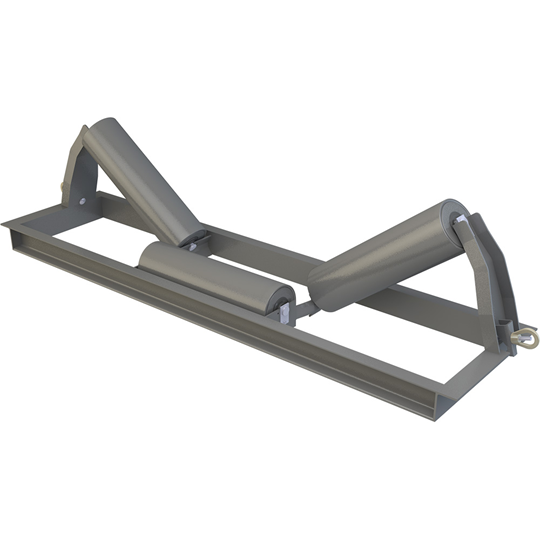

  • Wire Rope Idler
  Click Image to Zoom

Popular Connections With:

Before
After
  • Sealed for life bearings
  • Offset center roll eliminates roll gap
  • Wide mounting angles for reduced tipping
  • Low Total Indicator Run-out (TIR) rolls with inside weld rolls protects weld from wear
  • Rigid one piece jig welded frame with C channel cross members
  • Universal clamp that is compatible with rigid rail or wire ropes
  • Standard end clips to secure rolls in place
  • Available in CEMA C, D and E
