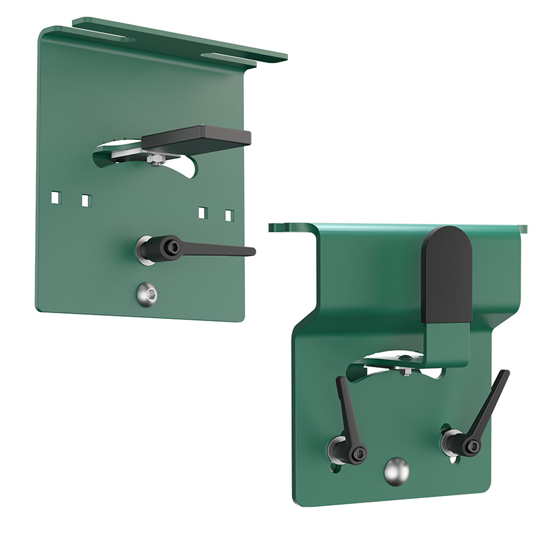

Return Training Bracket

Tracking a conveyor belt has long been a challenge in the bulk material conveying industry.

Tracking a conveyor belt has long been a challenge in the bulk material conveying industry. One of the most effective ways of manipulating belt tracking is by knocking idler rolls. PPI’s patented Return Training Bracket allows site personnel to knock or skew return idler rolls with ease. PPI’s innovative design allows the user to fine tune the return roll position achieving optimal belt travel.
  Reveal More

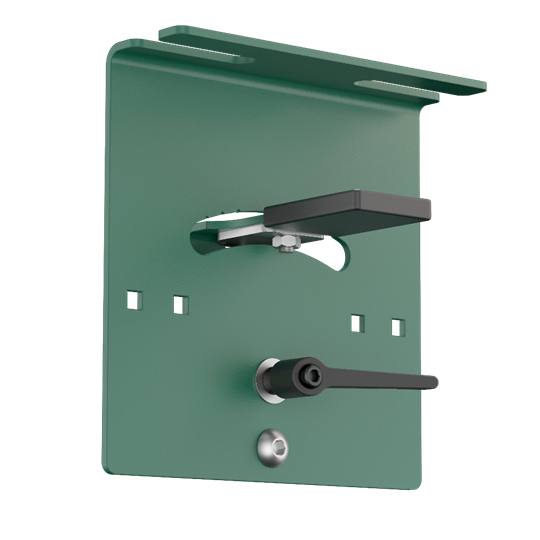

  • Return Training Bracket

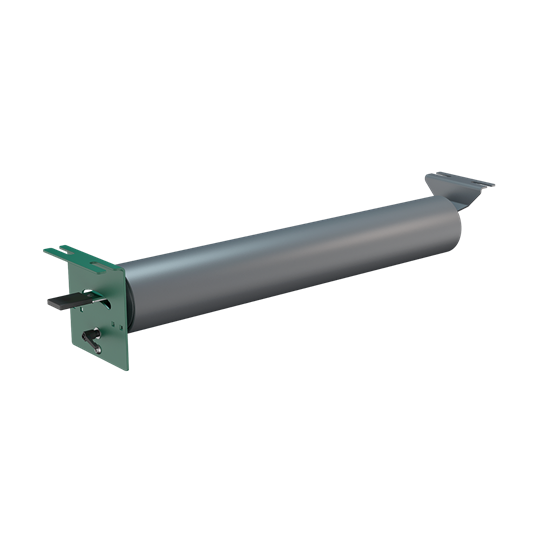

  • Return Training Bracket Assembly
  Click Image to Zoom
Easily knock/skew return idlers
Effective method of training belts
Large range of adjustment
Easily identifiable brackets, allows users to manage adjustment points
Maintenance friendly design
Direct interchange with PPI 4-1/2” drop brackets
Available for CEMA B, C, & D applications
