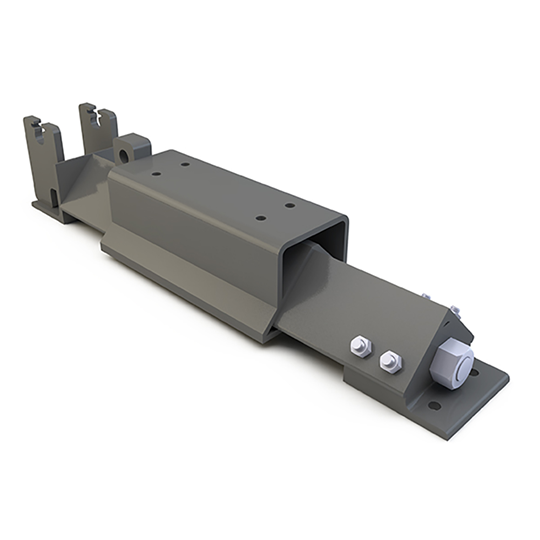

Precision Heavy Duty Hydraulic (PHYD)

Made of welded and bolted steel construction. Designed for series 2HD head trunnion mount cylinders.

Many different styles of Take-Up Frames exist for providing tension to the return side of conveyor belts. That’s why at PPI we offer such an extensive line of Take-Up Frames with characteristics that make them rugged, easy to operate and to install.

Reveal More

Features Options Resources

Click Image to Zoom

Popular Connections With:

Before

After

Features
Options
Resources

Same PHD take-up frame with hydraulic assist
Designed for push and pull applications
Frame mounting holes and basic dimensions same as PHD

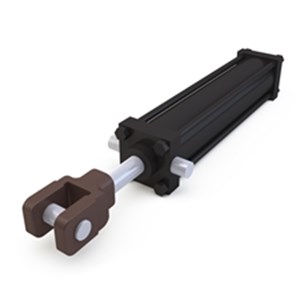

Uses standard 2HD series rod end trunnion mount cylinder

Accommodates pillow block bearings from 1-1/2” to 12”
- Stainless-steel treaded rod
