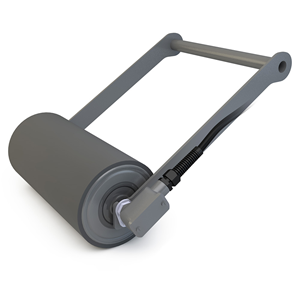

Smart Roll

Conveyor belt monitor that is designed with a proximity sensor.

PPI developed and patented the unique Smart Roll which monitors conveyor belt speed. Designed with a proximity sensor protected inside our rugged idler roll, it creates an electronic pulse stream that must be interpreted by either a PLC or our Smart Monitor. When those interpreting devices are incorporated into the conveyor system, they can control shutdowns and warning alert systems.

  Reveal More
  • Smart Roll
  Click Image to Zoom

Popular Connections With:

Before
After
  • Sensor protection
    • Mounted inside PPI CEMA D idler roll for protection from the environment by our LXT sealing system
  • Overload protection
    •  Protects the sensor from short circuits and wiring problems
  • Multifunction
    • The same sensor works with AC/DC/NPN/PNP
  • Maintenance free
  • Clean Side Return (CSR) is preferred
    • Versatile - belt width independent
    • Longer life due to no load
    • Flexible mounting
  • Available with 1, 2 or 6 pulses per revolution
  • Other mounting options
    • Troughing wing roll
    • Return roll
    • Universal mount
