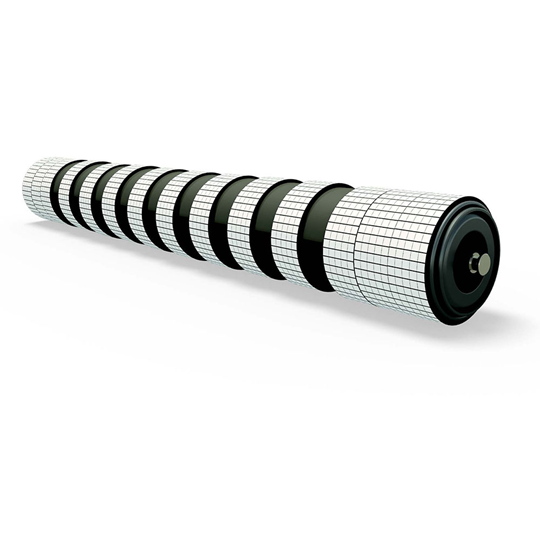

Ceramic Rubber Disc Roll

Developed for conveyor applications handling abrasive materials, PPI’s Ceramic Rubber Disc Roll provides exceptional wear characteristics.

Developed for conveyor applications handling abrasive materials, PPI’s Ceramic Rubber Disc Roll provides exceptional wear characteristics.  The tiles have been vulcanized into the rubber discs ensuring the tiles will remain in place and provide a durable surface for the life of the roll.  The ceramic tiles not only provide an abrasion resistant surface, they also offer a lower coefficient of friction than other roll coverings, minimizing the potential for belt damage should the roll stop turning.
  Reveal More
  Click Image to Zoom
  • Excellent abrasion resistance provide exceptional roll life in demanding applications
  • Low friction tiles are belt friendly and will not harm the belt if the roll stops turning
  • Ceramic tiles vulcanized into a rubber disc provides ultimate tile adhesion
  • Embedded tiles in rubber will not break compared to fragile solid ceramic disc designs
  • Rolls are built using PPI’s proven idler seal design
  • Special rolls and retro rolls are available
  • Available in ceramic tile the complete length of the roll or with spacers
  • Available in
    - Live Shaft Idlers are also available in 4”, 5”, 6”, 7”, and 8” diameters
    - CEMA D (6305) 4”, 5”, 6” and 7” diameters
    - CEMA D+ (6306) 6”, 7” and 8” diameters
    - CEMA E (6307) 6”, 7” and 8” diameters
    - CEMA E+ (6308) 5”, 6”, 7” and 8” diameters
    - CEMA F (6310) 6”, 7”, and 8” diameters
