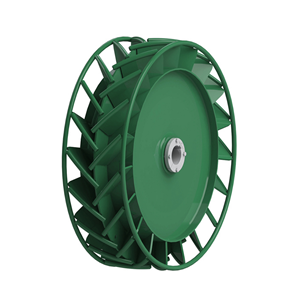

Boot Herringbone Wing® Pulley

Improved wear, quiet operation and gentle on grain along with a sensor ring for use with proximity or heat sensors.

The patented PPI Boot Herringbone Wing® pulley combines improved wear, quieter operation and gentle grain handling, along with a sensor ring.

  Reveal More
  • boot herringbone wing wings do not meet at the center line, tall and narrow design
  Click Image to Zoom

Popular Connections With:

Before
After
  • Angled wings direct grain to the outside edges of the pulley more efficiently
  • Increased number of wings gives more support to thin grain belting
  • 3/8” wings standard
  • One-inch AR contact bar extends wear life
  • Round sensor rings provide ample target for electronic sensors
  • Available for diameters <10”
  • 12-14” diameters available in face widths up to 63”
  • 16” diameter available in face widths up to 66”
  • 18” diameter and up available in face widths up to 78”
